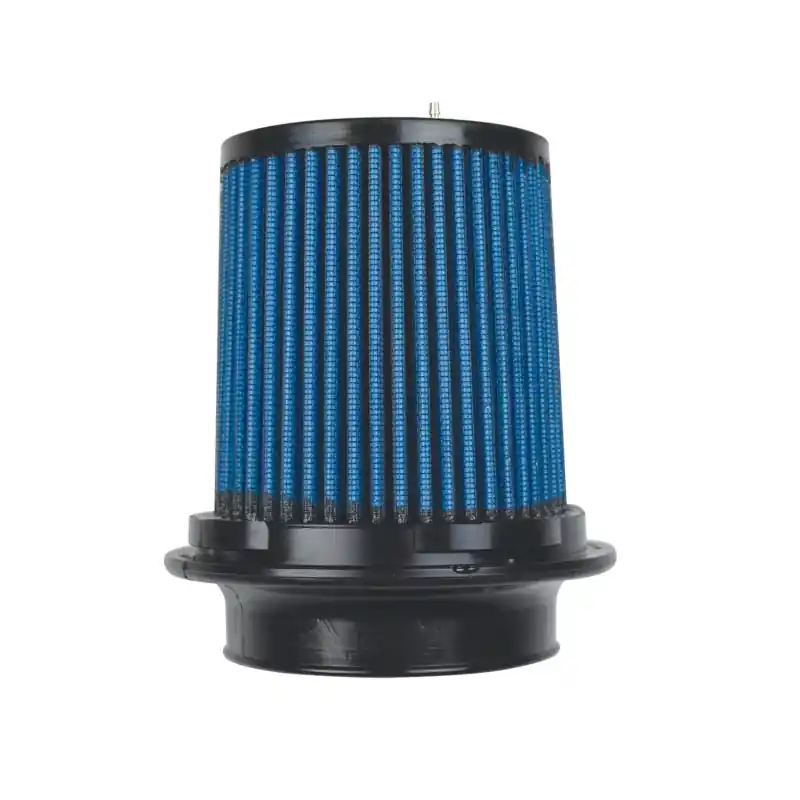

Editor’s Pick Injen NanoWeb Dry Air Filter- 5.5 Twis-Lok Base/ 3.5 Neck/ 4.0 Top w/Barb Fitting/ 6.5 Tall 55 Pleat

Description

Manufacturer Part # : X-1086-BB

Market Description

• With a rich history in racing and the street performance, Injen Technology has proven itself as a leader in filtration engineering and technology. Lab tested and race proven, Injen’s air filter line features state of the art designs and performance. All SuperNano-Web air filters feature a proprietary media that includes and high-flow base media with a highly efficient Nano membrane applied on top. This allows our SuperNano-Web media to flow the maximum amount of air, all while protecting your valuable engine from harmful dirt and debris. 100% cleanable with a light blast of compressed air and requiring no oil to function properly, you’ll never have to worry about your MAF sensor becoming dirty from over oiling your air filter again; Lab Tested ? Race Proven!, Our media was lab tested by an outside lab to ensure accuracy and filtration performance. We then took that data and tested in the harshest conditions by racing the Baja 1000 in Mexico and also throughout the sand dunes of the Middle East ? all to provide you with best air filter that money can buy. Improve Performance while Protecting Your Engine., Injen’s High-flow SuperNano-Web media was designed to improve airflow and filtration efficiency resulting in increased horsepower and torque, all while protecting your engine from harmful dirt and contaminants.
• In 1999 Injen designed the first urethane filter with a built in velocity stack for added performance. The Injen Technology Research and Development Team calculates each filters mesh and pleat count for each specific application during the development stages.

Product Description – Extended

• SuperNano-Web Air Filter, Part No. X-1086-BB, 3.5 inch Flange ID, 5.5 inch Twist Lock Base / 5.15 inch Media Height 4 inch Top / Filter Monitor Nipple.
• SuperNano-Web Dry Air Filter; 3.5 in. Dia. Neck w/Twist-Lok; 5.5 in. Base; 4 in. Top w/Barb Fitting; 55 Pleat; Blue;

Product Description – Short

• Injen NanoWeb Dry Air Filter- 5.5 Twis-Lok Base/ 3.5 Neck/ 4.0 Top w/Barb Fitting/ 6.5 Tall 55 Pleat
• Air Filter

Features and Benefits

• Direct Fit for many Injen intakes and/or universal applications
• Dry filtration media; no oil required for maximum performance
• Twist Lock base for use on select Evolution intake systems
• Integrated Ridges In Flange Insures A Tight No Leak Seal
• Stainless steel band clamp with inner protective liner
• Fully serviceable Injen SuperNano-Web dry air filter
• Deep pleats for maximum airflow and efficiency
• Base Outside Diameter 5.50″ Twist Lock
• Includes molded-in vacuum nipple
• Flange Inside Dimensions 3.50″
• Overall Height 6.50″+/-.150″
• Top Outside Dimensions 4.0″
• Conical Air Filter Shape
• Top Style; Closed Top
• Flange Height 1.00″
• Media Height 5.15″

Product Description – Long

• Technology SuperNano-Web Air Filter
• SuperNano-Web Dry Air Filter

AAIA Part Type Description

Engine Air Filter

Product Description – Invoice

Injen Air Filter
